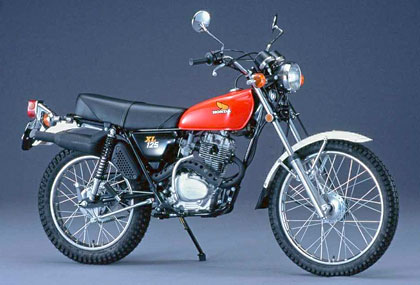

Honda XL125 Rough and Tough

Overview XL125

The all new Electric Start combined with Kick Start offers versatility and convenience.

The instrument cluster offers easy to use controls legible from a comfortable riding position.

The new headlamp design gives a fresh look while the sizeable halogen headlight helps the rider see even better in dark conditions.

The XL boasts drum brakes in the front and the rear for durability in demanding off road conditions and reduced maintenance.

The 21-inch front wheel with suspension boots to protect the forks is linked to long travel suspension that is perfect for off-road conditions.

4 Stroke Air-cooled single cylinder engine is both powerful and economical.

The rugged rear carrier offers a strong and sturdy carry option that can handle various top boxes.

12-liter tank coupled with a very economical engine means less stops and longer distances.

Specifications XL125

Engine: Single-cylinder, air-cooled, 4-stroke, OHC

Displacement: 124.73 cc

Max. Power: 8.0 kW/8,250 rpm

Max. Torque: 10.4 Nm/6,500 rpm

Bore x Stroke: 52.4 mm x 57.9 mm

Compression Ratio: 9.2:1

Air Filter: Type Paper Element (Vixcous Type)

Starting Method: Electric/Kick

Ignition: DC-CDI Battery

Transmission: 5-speed, Manual, 1-N-2-3-4-5

Dimension: (L x W x H) 2,107 x 827 x 1,125 mm

Wheelbase: 1,358 mm

Seat height: 849 mm

Ground Clearance: 263 mm

Kerb weight: 127 kg

Fuel Tank Capacity: 12.0 L

Baterry: 12V-4Ah

Head Lamp: 12V-35/35W

Tyre size: Front: 70/100-21, Rear: 100/90-18

Brake Front/Rear: Leading Trailing Drum

Frame Type: Semi Double Cradle

Front Suspension: Telescopic Fork, 159mm Axle Travel

Rear Suspension: High Density Rear Shock Tube, 148mm Axel Travel

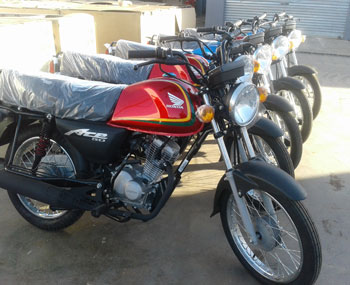

Honda ACE50

Specifications ACE50
