Kymco quad utility Vehicles

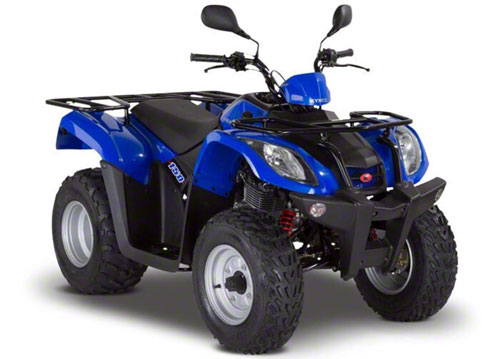

MXU 150

With a practical compact size and straight forward features, MXU 150 is perfect to haul you around your property. The efficient 11HP four-stroke engine delivers reliable power, while the CVT automatic transmission with reverse, smooth suspension and light steering make this machine easy to ride. Fitted with wide carry racks there’s plenty of room for any extra equipment. If you’re searching for great value, KYMCO MXU 150 delivers the convenience of a full-sized ATV in a practical and nimble package.

SPECIFICATIONS
Engine
Engine: SOHC, air-cooled, four-stroke
Displacement: 149cc
Power: 11 HP @ 7000 RPM
Bore x Stroke: 62 x 49.5 mm
Compression ratio: 9.7:1
Fuel system: Carburettor
Ignition: CDI
Starting system: Electric with kick backup
Transmission: CVT automatic with reverse gear
Final drive: 2WD, Chain
Suspension
Front suspension: Single A-arm with twin shock absorbers
Rear suspension: Unit-swing with single shock absorber
Front tire size: 21 x 7 – 10 inch
Rear tire size: 22 x 10 – 10 inch
Front brakes: Dual mechanical drum
Rear brakes: Hydraulic disc
Capacity
Carrying: 15 kg (front) / 20 kg (rear)
Towing: 150 kg
Size / Weight
Length x Width x Height: 1776 mm x 950 mm x 1040 mm
Wheelbase: 1115 mm
Seat height: 750 mm
Ground clearance: 195 mm
Fuel capacity: 8.1 l
Dry weight: 175 kg
Other
Colour choices: Green, Blue, Red

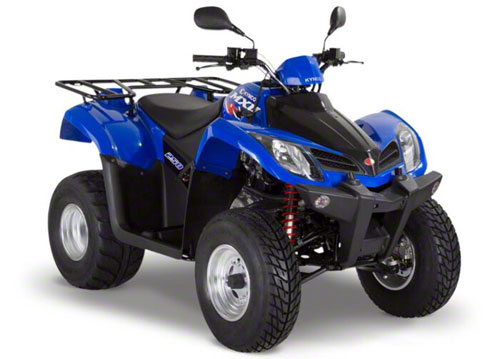

MXU 250

Loaded with features that you’d only expect on more expensive machines, the new KYMCO MXU 250 has everything you need to get the job done. New and enhanced body styling and design.

SPECIFICATIONS
Engine
Engine Type: Single-Cylinder
Cylinders: 1
Engine Stroke: 4-Stroke
Valve Configuration: Sohc
Displacement (Cc/Ci): 249 / 15.2
Carburetion Type: Carburetor
Transmission
Transmission Type: Continuously Variable (Cvt)
Primary Drive (Rear Wheel): Chain
Reverse: Yes
Wheels & Tires
Front Tire (Full Spec): At 22 X 7-10
Rear Tire (Full Spec): At 22 X 10-10
Brakes
Front Brake Type: Disc
Rear Brake Type: Disc
Technical Specifications:
Wheelbase (Mm): 1183.6
Dry Weight (Kg): 213.2
Fuel Capacity (L): 12.5
Seats
Seat Height (Mm): 807.7
Number Of Seats: 1
Drive Line
Driveline Type: 4x2
Number Of Driveline Modes: 1
Storage
Rear Rack: Standard
Front Rack: Standard
Lights
Halogen Headlight (S): Standard

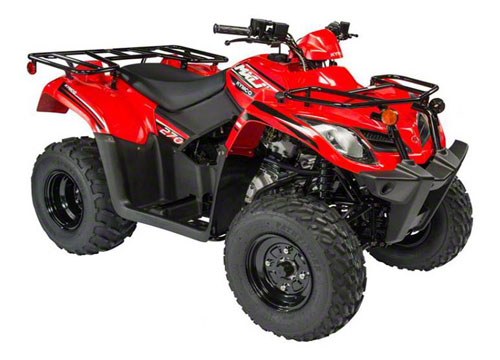

MXU 270

EVERYTHING YOU NEED TO GET THE JOB DONE.
Loaded with features that you’d only expect on more expensive machines, the new KYMCO MXU 270 has everything you need to get the job done. New and enhanced body styling and design.

SPECIFICATIONS
Engine
Engine Type: Single-Cylinder
Cylinders:1
Engine Stroke: 4-Stroke
Valve Configuration: Sohc
Displacement: 270
Carburetion Type: Carburetor
Transmission
Transmission Type: Continuously Variable (Cvt)
Primary Drive (Rear Wheel): Chain
Reverse: Yes
Wheels & Tires
Front Tire (Full Spec): At 22 X 7-10
Rear Tire (Full Spec): At 22 X 10-10
Brakes
Front Brake Type: Disc
Rear Brake Type: Disc
Technical Specifications
Wheelbase (Mm): 1183.6
Dry Weight (Kg): 213.2
Fuel Capacity (L): 12.5
Seats
Seat Height (Mm): 807.7
Number Of Seats: 1
Drive Line
Driveline Type: 4x2
Number Of Driveline Modes: 1
Storage
Rear Rack: Standard
Front Rack: Standard
Lights
Halogen Headlight (S): Standard

MXU 450

This mid-sized base model is fully loaded with more special features than most ATVs on the market. The 4-wheel independent suspension and on demand 2wd/4wd drive system makes this vehicle “the-go-to” vehicle to take you everywhere.

SPECIFICATIONS
Engine
Engine Type | SOHC 4-Stroke 4-Valve
Displacement | 443cc
Bore x Stroke | 89×71.2mm
Claimed Horsepower | 33hp
Claimed Torque | 24.63ft/lb @ 6500rpm
Fuel Management System | Electric Fuel Injection
Cooling | Liquid
Ignition | Electric
Drive Train & Brakes
Transmission | CVT Automatic H-L-N-R w/ Engine Braking
Front Brakes | Linked Hydraulic Disc
Rear Brakes | Linked Hydraulic Disc
Drive Modes | Push Button On-Demand 2WD/4WD w/ Differential Lock
Chassis / Suspension
Front Suspension | Independent Dual A-Arm/7″
Rear Suspension | Independent Dual A-Arm/7″
Tires-Front | 24x8x12
Tires-Rear | 24x10x12
Frame | Pipe Under Bone
Shocks | Oil Dampened Preload Adjustable
Towing Capacity | 1050 lb.
Dimensions / Weight
Length | 83.6″
Width | 43.4″
Height | 46.9″
Wheelbase| 47.9″
Rake Trail | 10.5″
Claimed Dry Weight | 608 lbs
Fuel Capacity | 4.7 gal

MXU 700i

The MXU700i L.E. EPS is a Fully Automatic Performance Sport Utility ATV with the following features:

4 Wheel Independent 5 Position Adjustable Shocks
Dual A-Arm Front Suspension
Dual A-Arm Rear Suspension w/ Sway Bar
Electronic Fuel Injection (EFI)
Front and Rear Cargo Racks
Multi-Function Digital / Analog Instrument Display
Dual Storage Compartments
Winch Mounting Plate
2 “ Receiver Hitch
Towing Capacity: 1050lbs
CVT Automatic Transmission H-L-N-R-P W/ Engine Braking
On-Demand 2WD/4WD With Differential Lock
Hydraulic Front and Rear Disc Brakes
Ages 16 and up Adult ATV

SPECIFICATIONS
Engine
Engine Type: Single-Cylinder
Cylinders: 1
Engine Stroke: 4-Stroke
Valve Configuration: Sohc
Displacement (Cc): 695
Carburetion Type: Fuel Injected
Transmission
Transmission Type: Continuously Variable (Cvt)
Primary Drive (Front Wheel): Shaft
Reverse: Yes
Wheels & Tires
Front Tire (Full Spec): At 26 X 9-14
Rear Tire (Full Spec): At 26 X 11-14
Brakes
Front Brake Type: Dual Hydraulic Disc
Rear Brake Type: Hydraulic Disc
Technical Specifications
Wheelbase (Mm): 1297.9
Dry Weight (Kg): 356.5
Fuel Capacity (L): 16.7
Seats
Number Of Seats: 1
Drive Line
Driveline Type: Selectable 4x2 / 4x4
Number Of Driveline Modes: 2
Differential Lock: Standard
Storage
Rear Rack: Standard
Front Rack: Standard
Lights
Halogen Headlight (S): Standard
